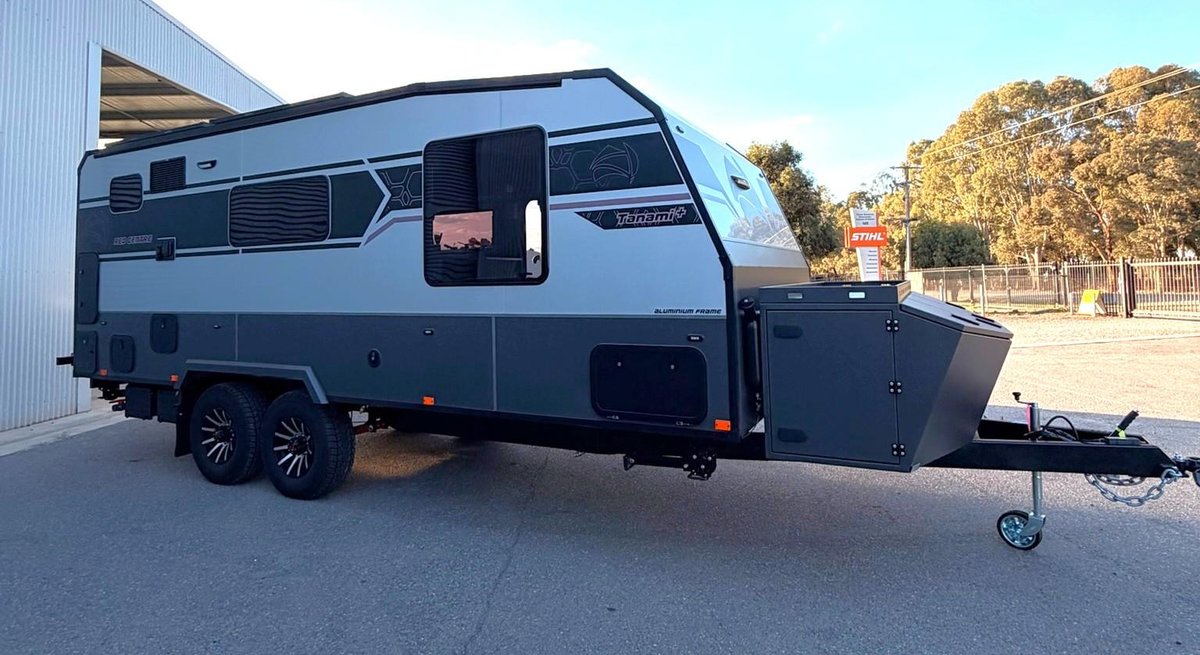

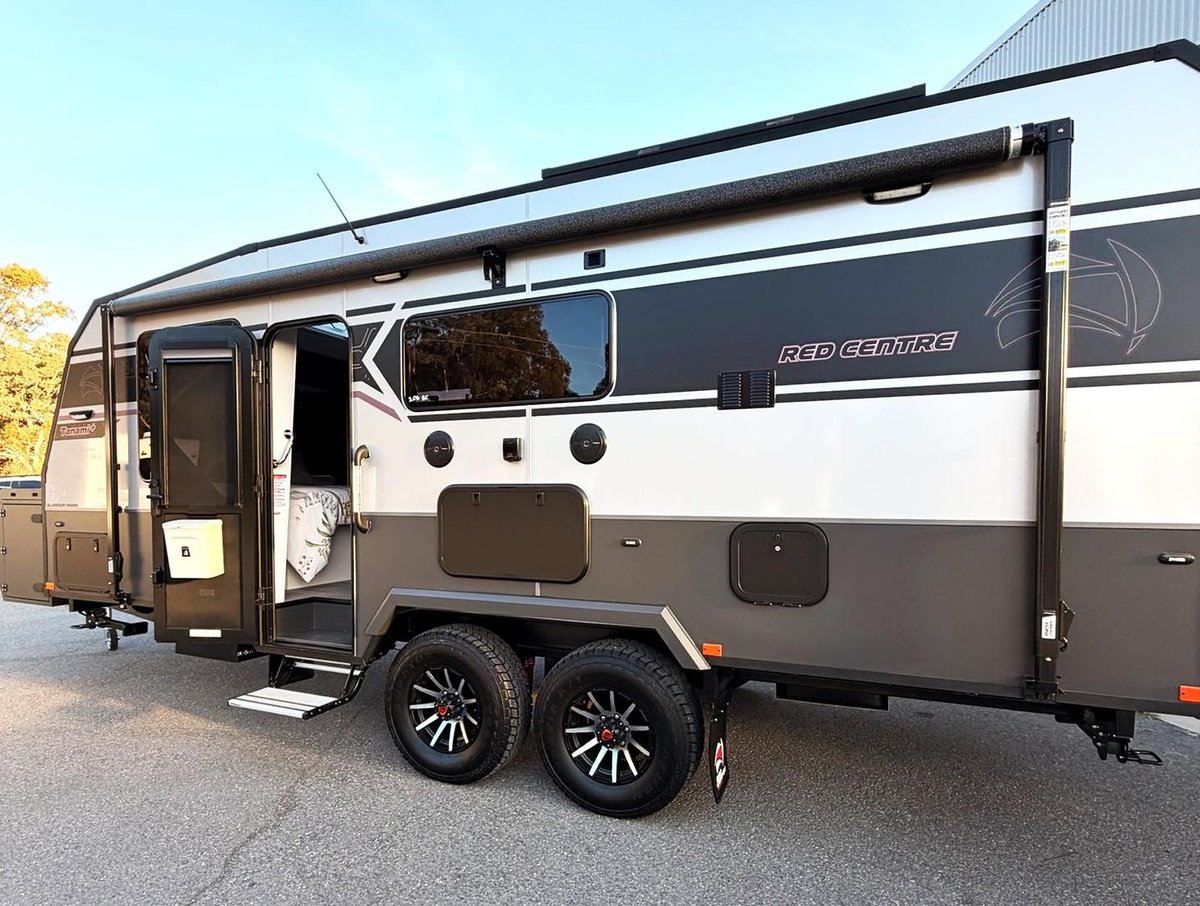

2026 Red Centre Tanami Plus 206 Type C

CHASSIS & SUSPENSION
100% Australian Designed & Engineered Using Australian Steel
6" Main Frame
6" A-Frame Through To Suspension
2" Chassis Raiser
500mm Drawbar Extension
D-035 Off Road Coupling, Recessed in A-Frame
4.4T Independent Airbag Suspension (4 Channel) Dual Shock
12" Electric Drum Brakes
16" Alloy Wheels x 5
265/75 R16 All Terrain Tyres
8" Jockey Wheel
Aluminium Pull Out Step
4 x Drop Down Stabilizer Legs
4 Arm Rear Bumper Bar

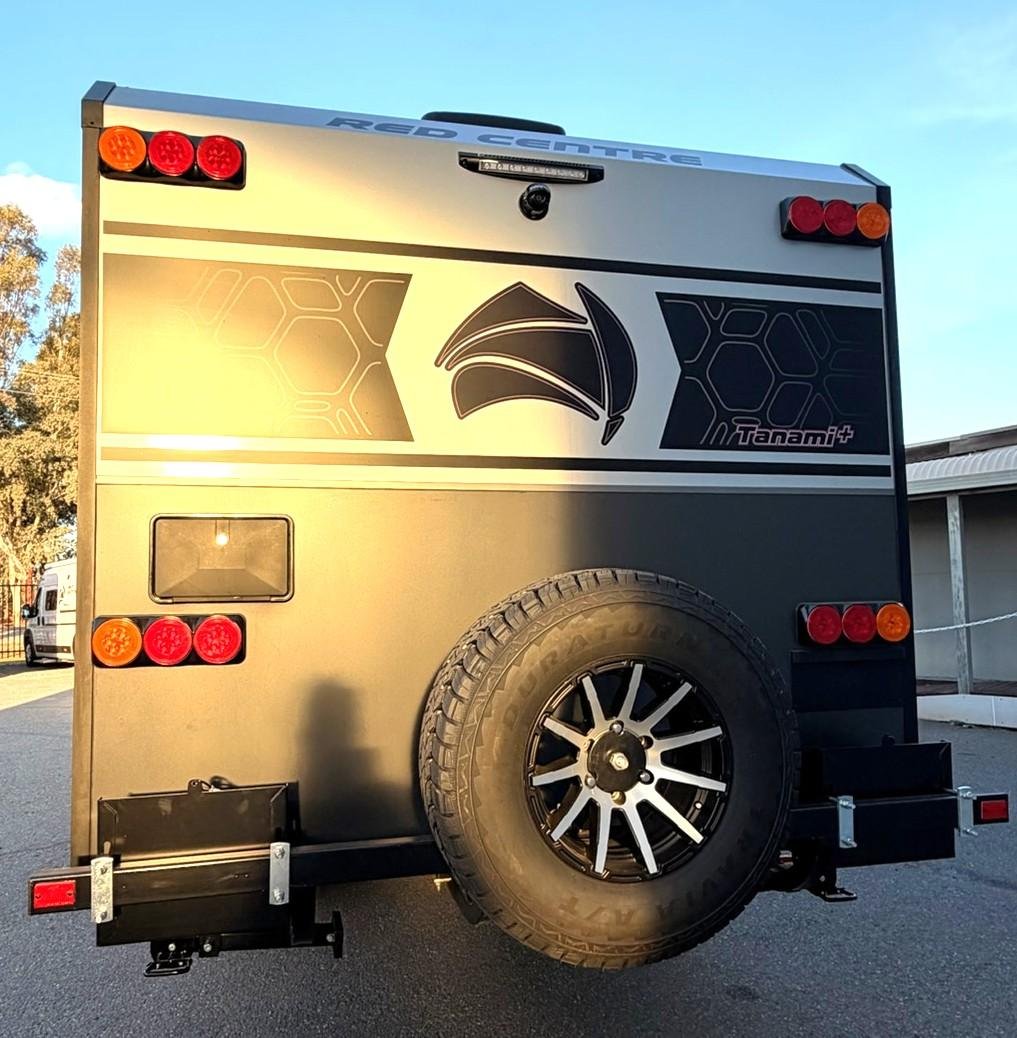

Spare Tyre on Rear Bumper Bar
Battery Boxes Mounted on Chassis

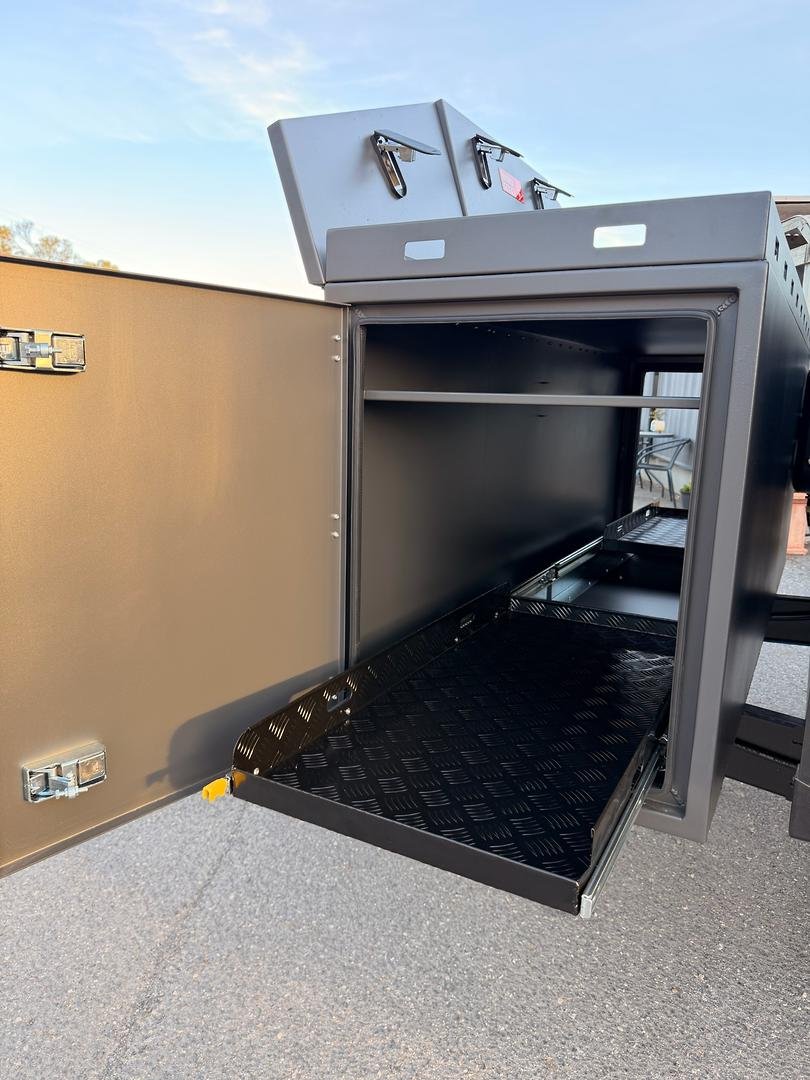

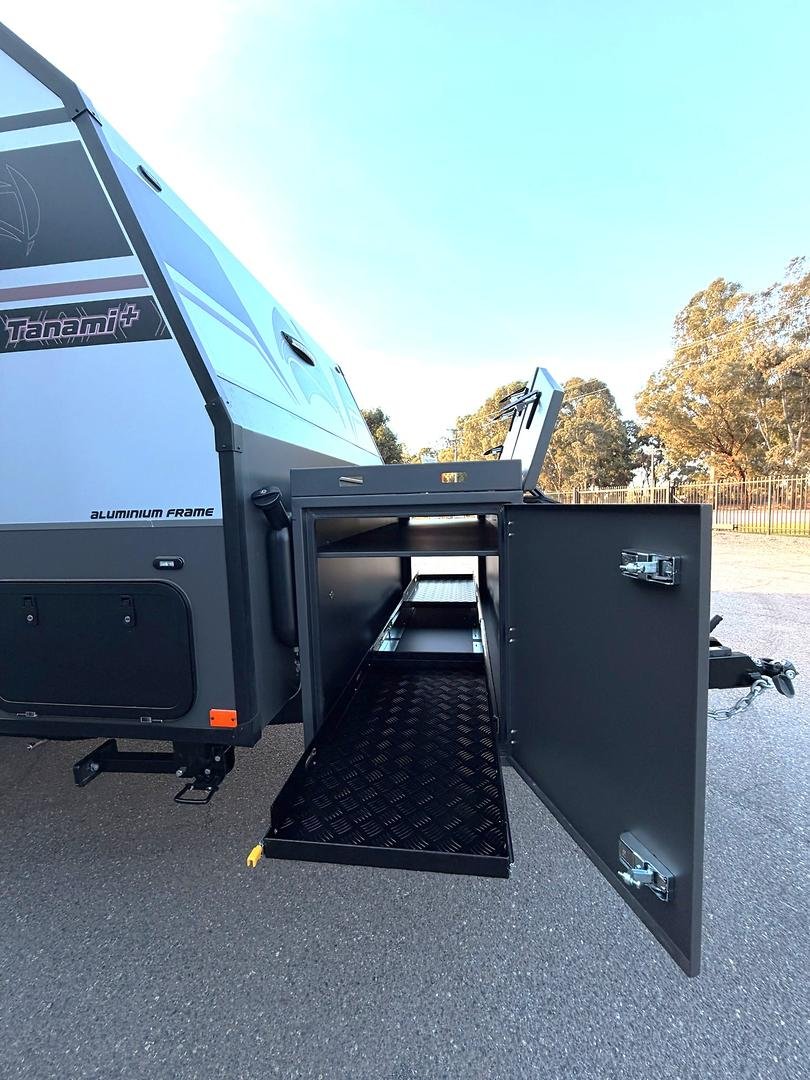

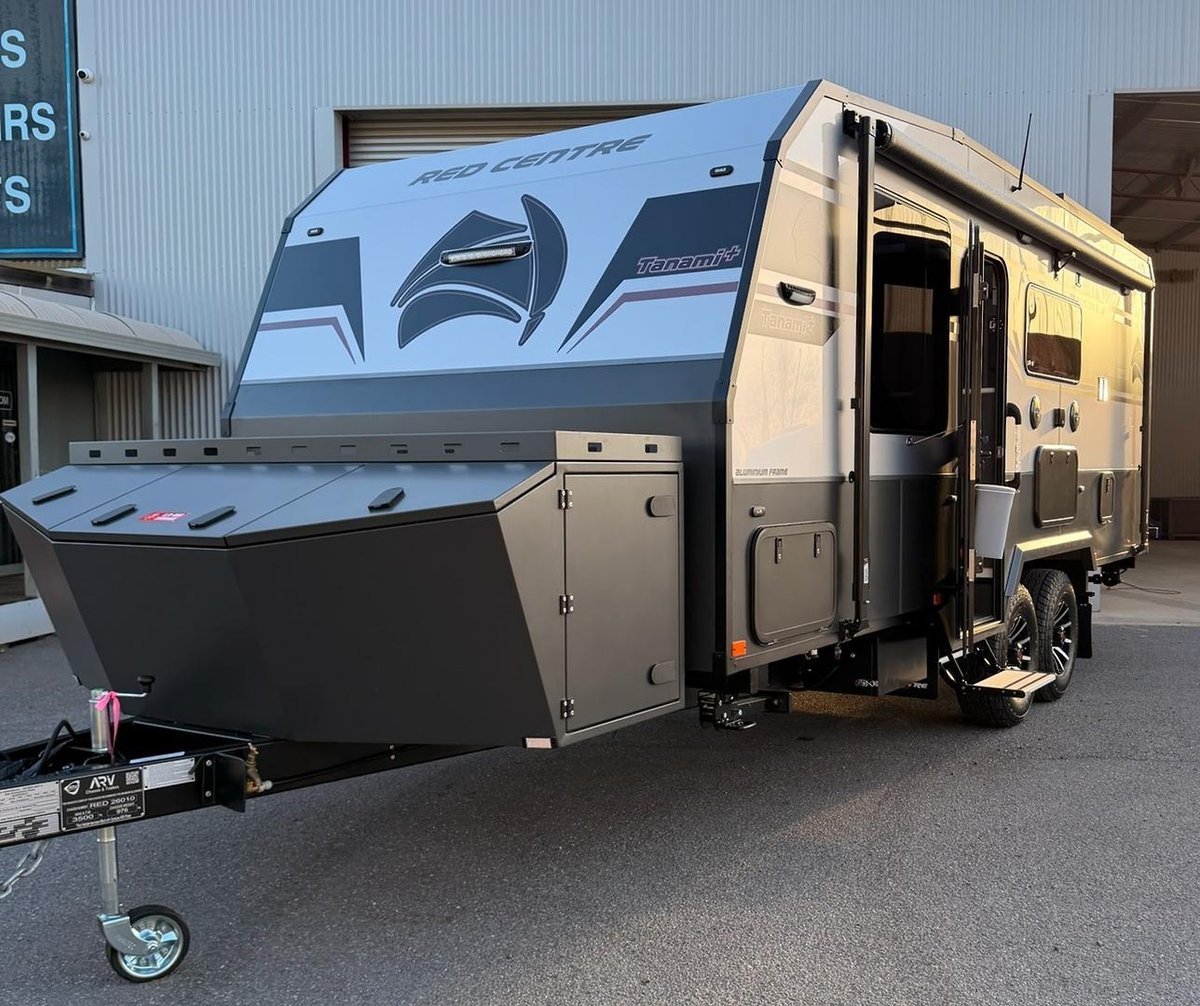

Fully Integrated Premium Toolbox with Draw Slides & Gas Storage
2 x Jerry Can Holders on Rear Bumper Bar

CONSTRUCTION (THINGS YOU NEED TO KNOW)
Aluminium Framed with Henrob Riveting system
1 Piece Insulated Composite Floor
1 Piece Fibre Glass Composite Roof (Hail Resistant)
Aircell Insulation
Aluminium Composite External Paneling (Hail Resistant)
Screwed, Stapled & Bonded Interlocking CNC Furniture Construction
Furniture Bolted Through the Floor

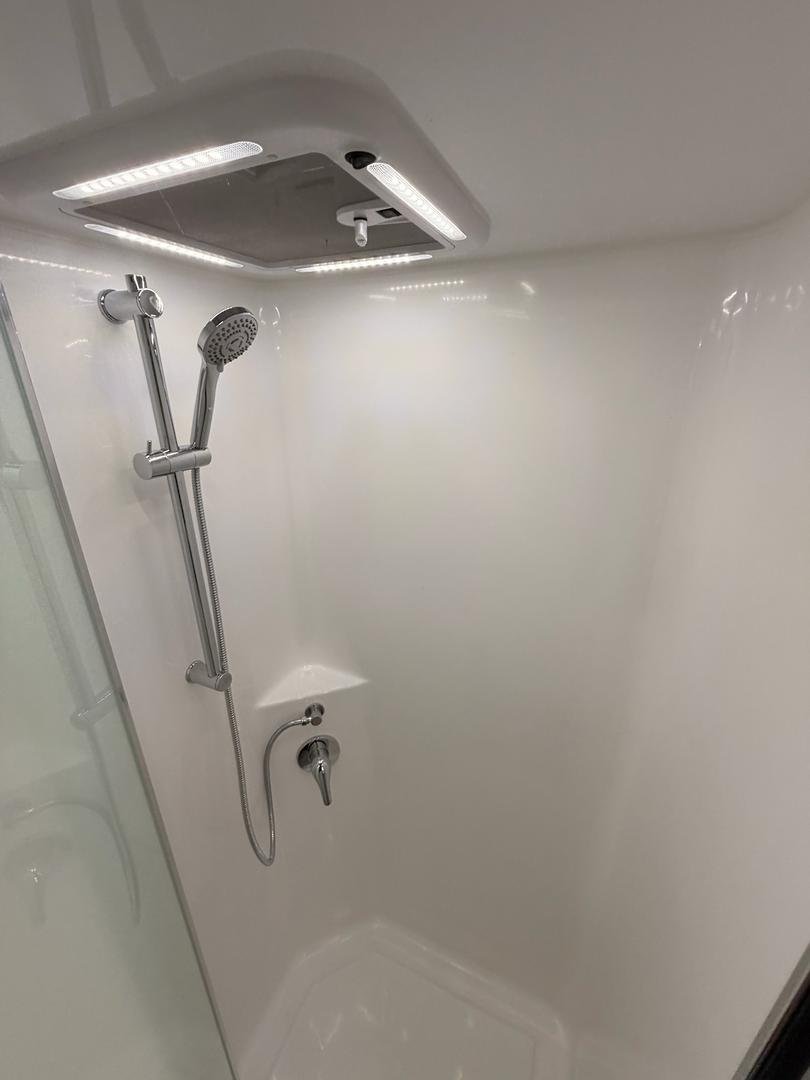

Full 1 Piece Fibreglass Shower Mould
Checkerplate or Smooth Plate, Front, Sides & Rear
Security Door with Midge Mesh, Compression Lock & Retractable Blind
Rubbish Bin on Entry Door
Full Ensuite – Separate Shower and Toilet
Dragon Pro Draw System, Ball Bearing Slides with Soft Close Function
Heavy Duty Ripstop Vinyl Roll Out Awning
Double Glazed Windows with Flyscreen & Blockout Blind
Double Glazed Skylights with Internal Flyscreen, Blockout Blind & LED Light
Postform Rolled Edge Benchtops
External gas bayonet
Gas Struts on All Overhead Cupboard Doors

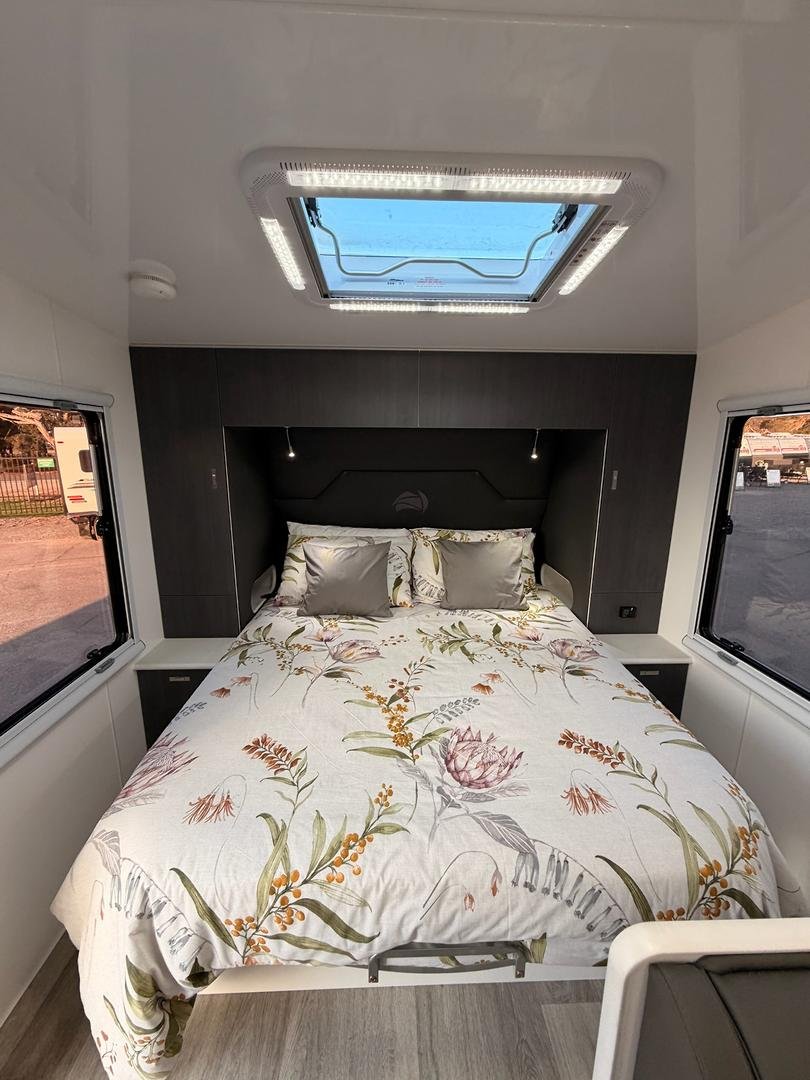

Pillowtop Innerspring Mattress
Full Height Splash Backs in Kitchen and Ensuite
12v Dual Direction Exhaust Fans with LED Lights in Ensuite

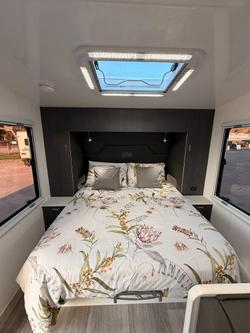

Full Wrap Around Upholstered Bed Head
External Picnic Table with Map of Australia inset
Ceramic Toilet Bowl

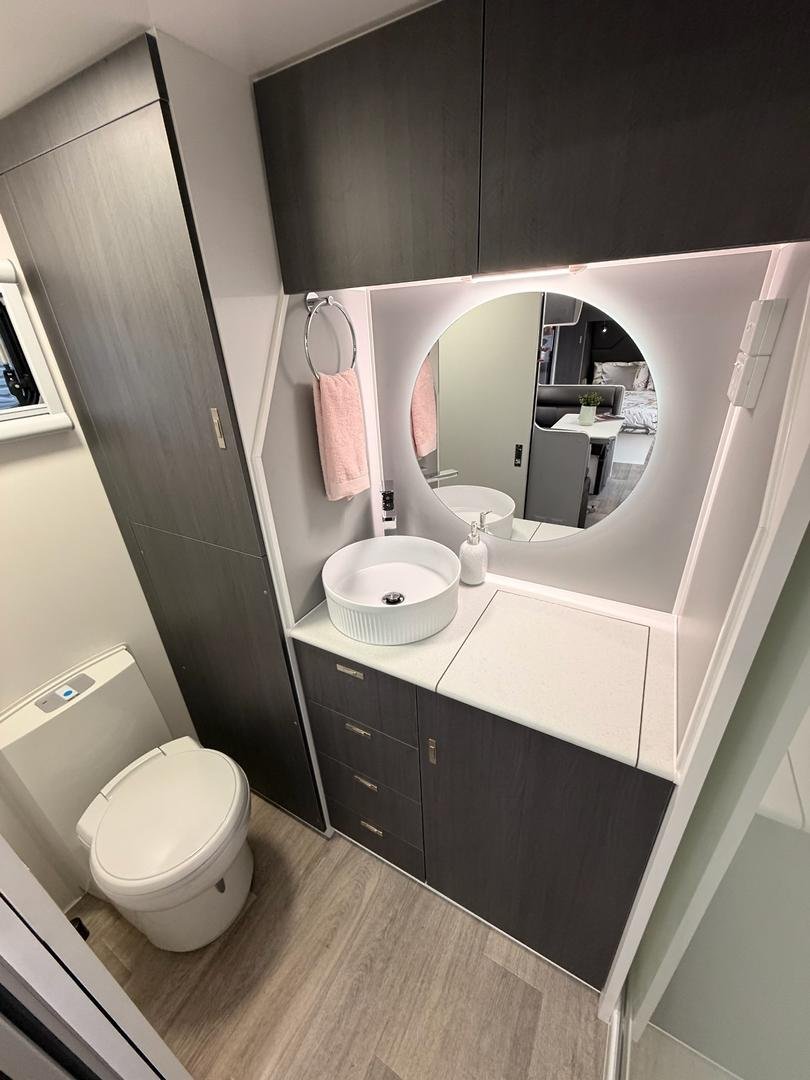

Ceramic Basin in Ensuite
Towel Rail, Toilet Roll Holder and Hand Towel Ring
External 240V Outlet
Removable Rails in Kitchen & Dinette Overhead Cupboards
Lift Up Footrests on Lounge *
Linen Cupboard in Ensuite

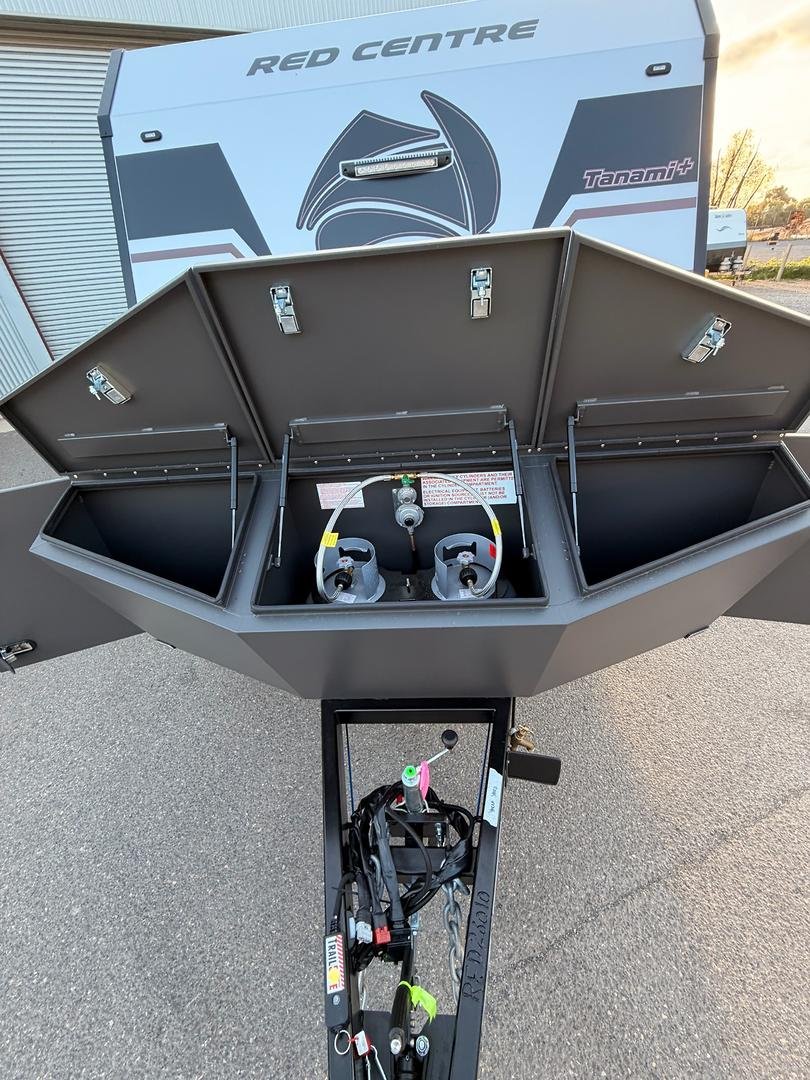

2 x 9kg Gas Bottles
Aluminium Adjustable External Access Hatches Keyed Alike
Flick Mixer Taps in Kitchen & Ensuite
External 12V Outlet
External TV Bracket & TV Point
Omni Directional TV Antenna
Reverse Camera
Full Tunnel Boot with Marine Carpeted Floor

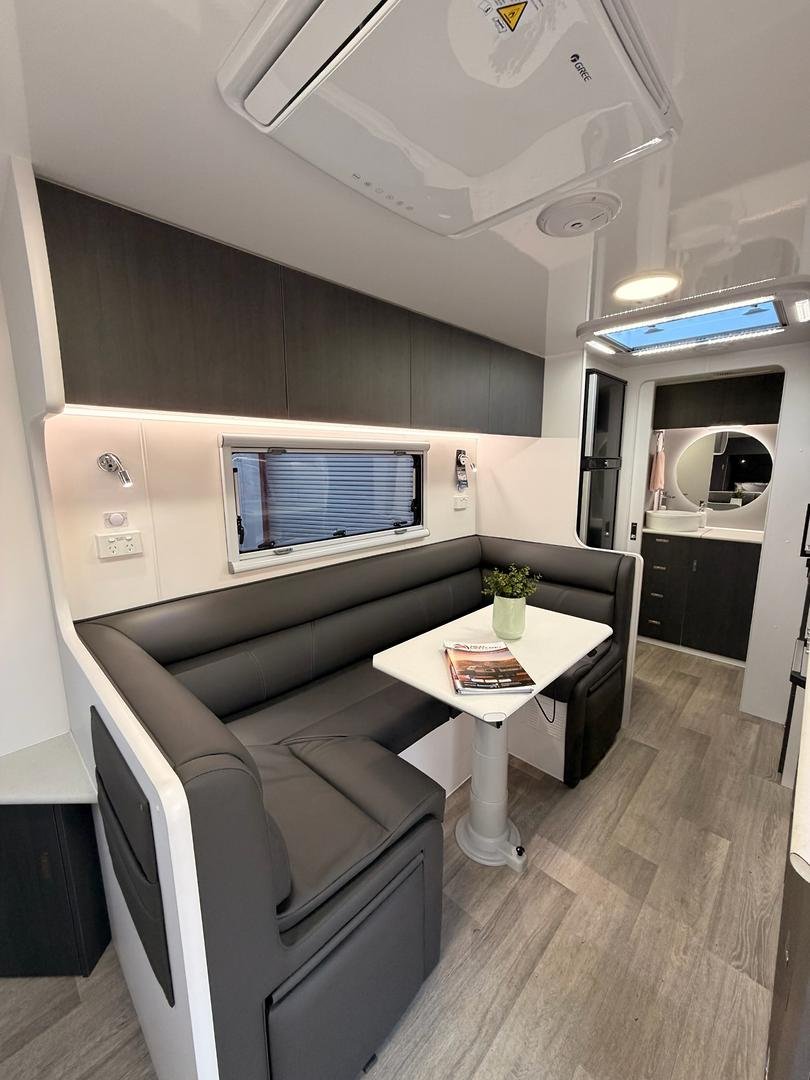

Café, L shaped ,Club Lounge or Recliner Configurations *
Generator Storage Compartment *
Various Colour Choices for Sinks, Tapware & Cupboard Handles
Larger Skylights on Roof
Rope/Sail Track on Roadside of Caravan
Premium Capping with Cover Caps to Replace J Mould

ELECTRICAL
Victron Battery Management System with 5" Touch Screen
Victron Multiplus 120 Amp 240V Battery Charger
2 x 30 Amp MPPT Solar Regulator
30 Amp DC-DC Charger
Victron Multiplus 3000VA Inverter
3 x 220W Solar Panel
2 x 200 A/H Lithium Battery
Digital Water Tank Displays
240V & USB/USB C Either Side of Bed and at Dining Table
External Entertainment Hatch with 240V, 12V,USB, TV Point & Bracket
24" Smart TV
Media Player/Radio
2 x Internal Speakers & 2 x External speakers
LED Reading lights
LED Strip Lights Under Kitchen & Dinette OHC's
Backlight Mirror in Ensuite
LED Front and Rear Worklights
3 x LED Bug Lights on Doorside
1 x LED Annexe Light on Roadside
Interior LED Lighting
Full Width LED Strip Light in Tunnel Boot
LED External Grab Handle
Breakaway System
12 Pin Flat Trailer Plug
1 x Grey Anderson Plug (Charge Battery)
1 x Red Anderson Plug (ALKO ESC)
LED Clearance Lights & Tail Lights - Second Set of Tail Lights up High
ALKO ESC (Electronic Stability Control)
2 x 12V Fans in Bedroom
12V Cabin Pressure System in Ensuite
Anderson Plug for Portable Solar Panel
Double Power Points Throughout

PLUMBING
2 x 90ltr Water Tanks
1 x 62ltr Dedicated Drinking Water Tank
1 x 90ltr Grey Water Tank
2 x 12V Pumps
Separate Water Filter Tap in Kitchen
Mains Water Manifold for Tanks
Mains Pressure Inlet with Limiting Valve
Tap on A frame (fully protected)
External Gas Bayonet
External Shower with Hot & Cold Water
Checkerplate Protection with Tap Guard on Water Tanks
Plumbing Protection on Pipes

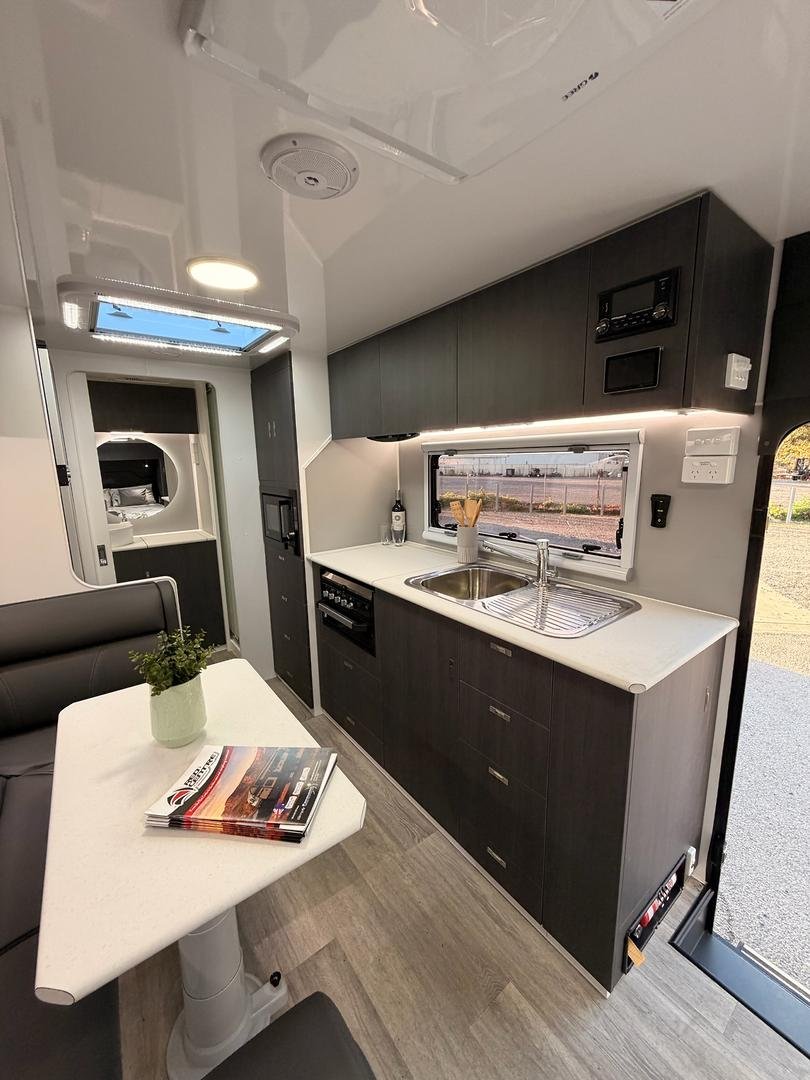

APPLIANCES
Large 2 Door, Compressor Fridge/Freezer
Instantaneous Gas Hot Water System
Reverse Cycle Air Conditioner
12V Rangehood
3 x Gas and 1 x Electric Cooktop
4 in 1 Combo (Microwave, Airfryer, Grill & Convection Oven)
Top Load Washing Machine *
Choice of Gas or Diesel Heater
12V Cabin Pressure System in Ensuite
